02-06 Honda CRV |
|
|
Radio Removal |
 |

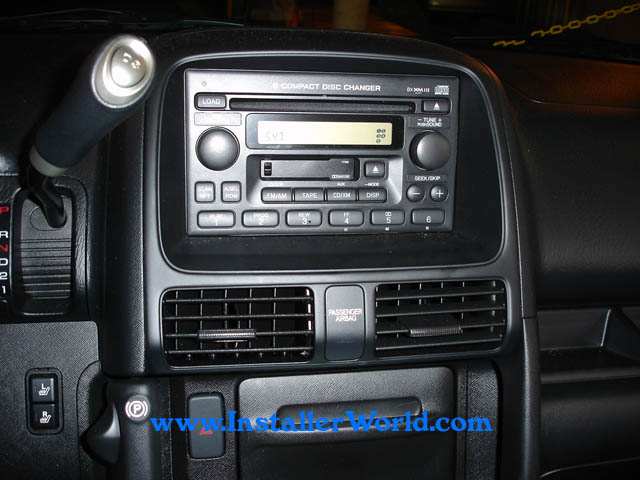

Layout of radio to be removed
|
|||
 |

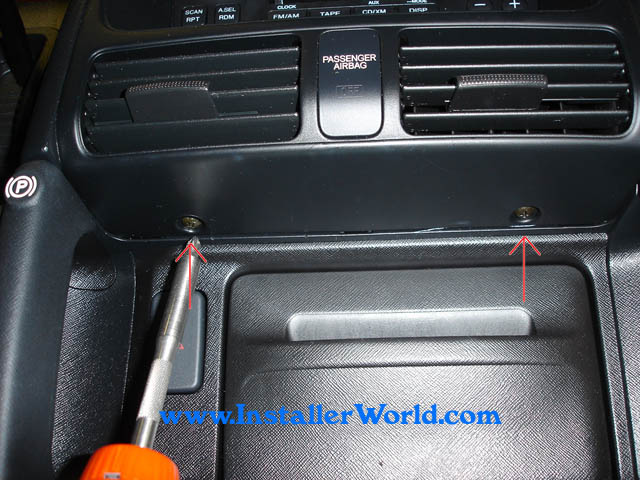

remove 2 Phillips screws under the heater vents | |||
 |

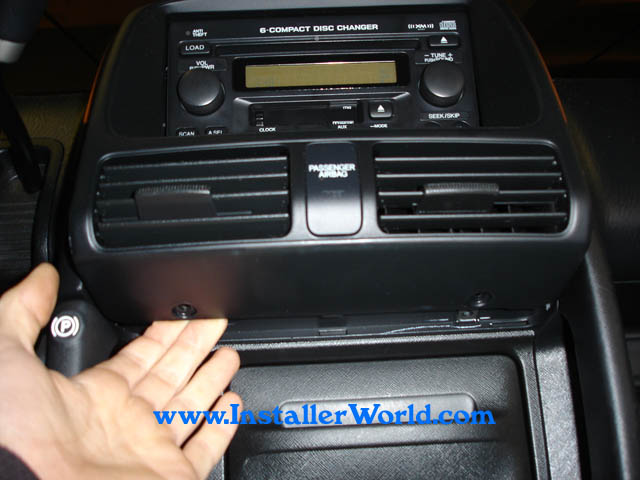

use hands or panel removal tool to pull off the dash piece | |||
 |

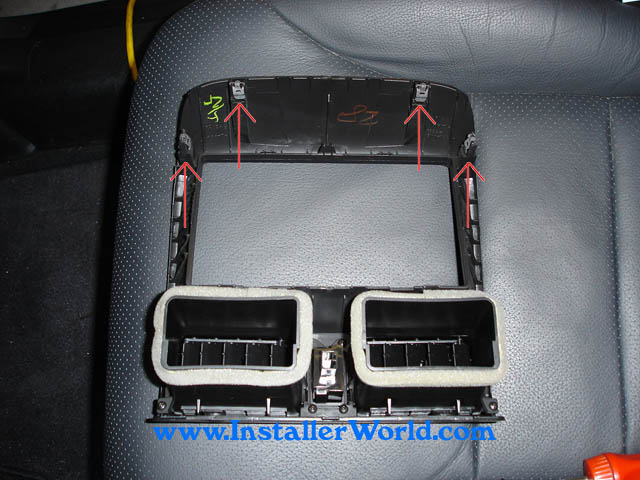

location of the clips on the dash piece | |||
 |

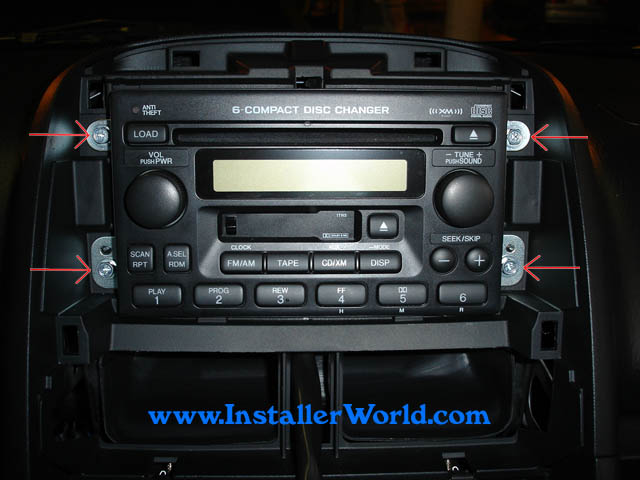

remove 4 8mm/Phillips screws and remove radio | |||
